BJT practice problems
Refresh the page to get a new problem.
Read the npn-BJT forward-active class notes.

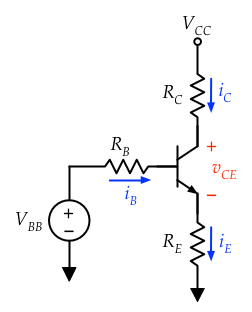

For the BJT circuit shown,
- RC = 150 Ω
- RB = 1.5 kΩ
- RE = 1.5 kΩ
- VCC = 20 V
- VBB = 4.5 V
- For the BJT, βF = 175
Find iC, iB, iE, and vCE.
BJT practice problems
Refresh the page to get a new problem.
Read the npn-BJT forward-active class notes.
For the BJT circuit shown,
Find iC, iB, iE, and vCE.
