Inductor practice problems
Refresh the page to get a new problem.
Read the inductor class notes.

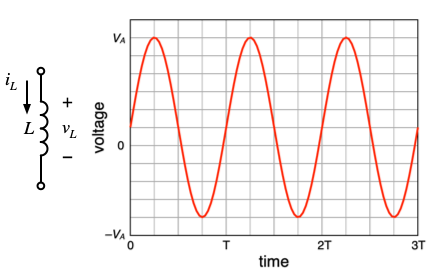

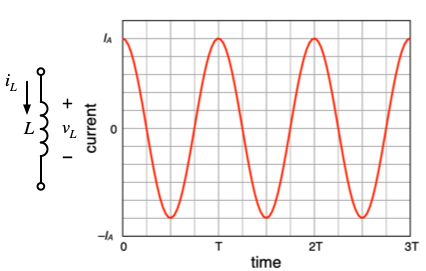

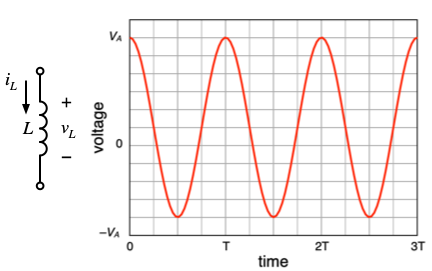

The current through an inductor with L = 6.8 H varies in time as shown in the graph,
where IP = 2 A, t1 = 6 s, t2 = 10 s, and t3 = 7 s.
Calculate the inductor voltage during each of the time intervals, v1 (during t1), v2 (during t2), and v3 (during t3).
