Non-linear oscillator practice problems
Refresh the page to get a new problem.
Read the Non-linear oscillator class notes.

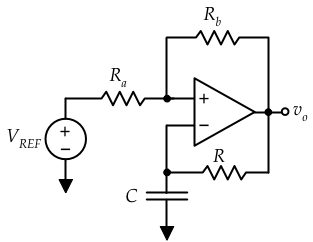

For the non-linear oscillator circuit shown,
- Ra = 3.3 kΩ
- Rb = 12 kΩ
- R = 3.3 kΩ
- C = 3.3 μF
The op-amp output saturation levels are
VL+ = 10 V and VL- = 0 V.
The reference voltage is
VREF = 7 V.
For the base comparator, what are VTL and VTH? For the oscillator, what is the oscillation frequency?
