Comparator practice problems
Refresh the page to get a new problem.
Read the Comparator class notes.

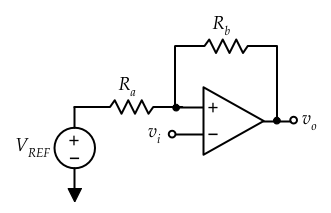

For the comparator shown,
- Ra = 2.7 kΩ
- Rb = 6.8 kΩ
- Vref = 0 V
The upper output voltage limit of the op amp is VL+ = 7.5 V, and the lower limit is VL- = -7.5 V.
Find VTH, VTL, and the hysteresis width for the comparator.
